2024 RZR XP LONG TRAVEL KIT

FITMENT:

2024 RZR XP1000.

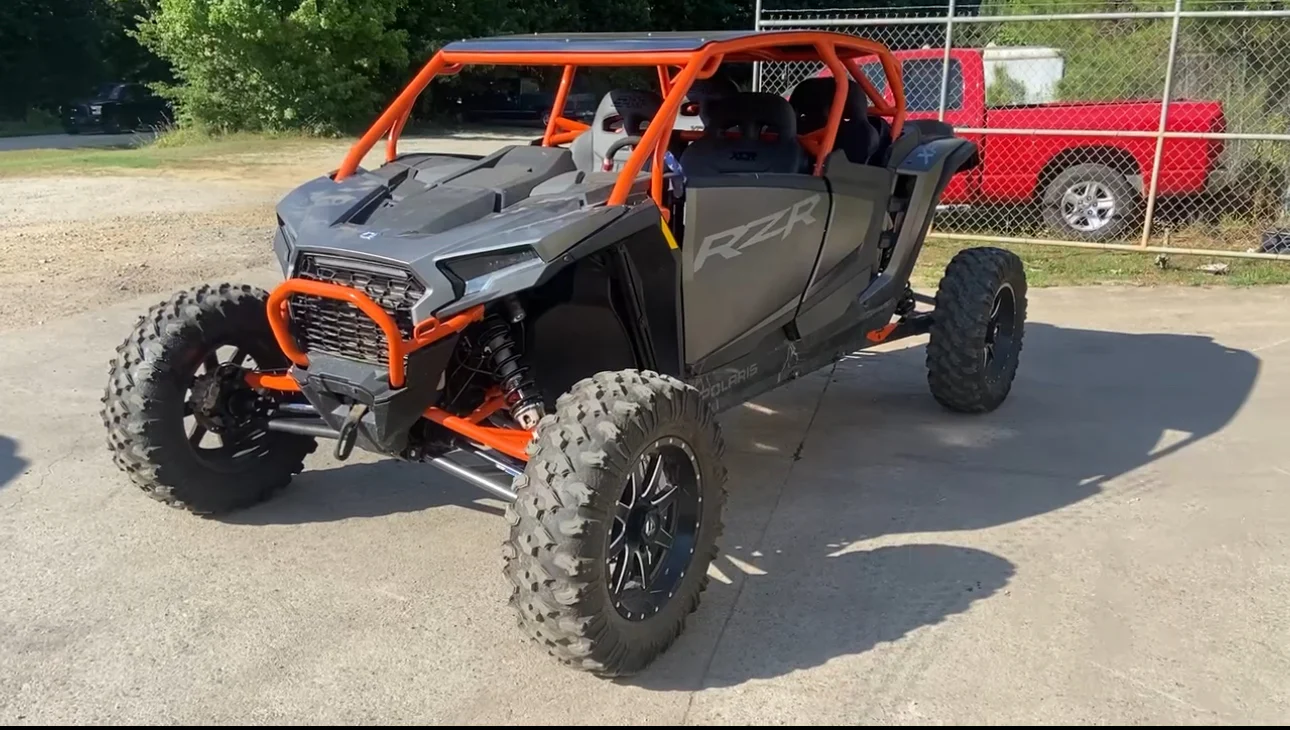

Give your 64” RZR XP A wider, and more stable stance.

Bolt on installation.
No drilling required

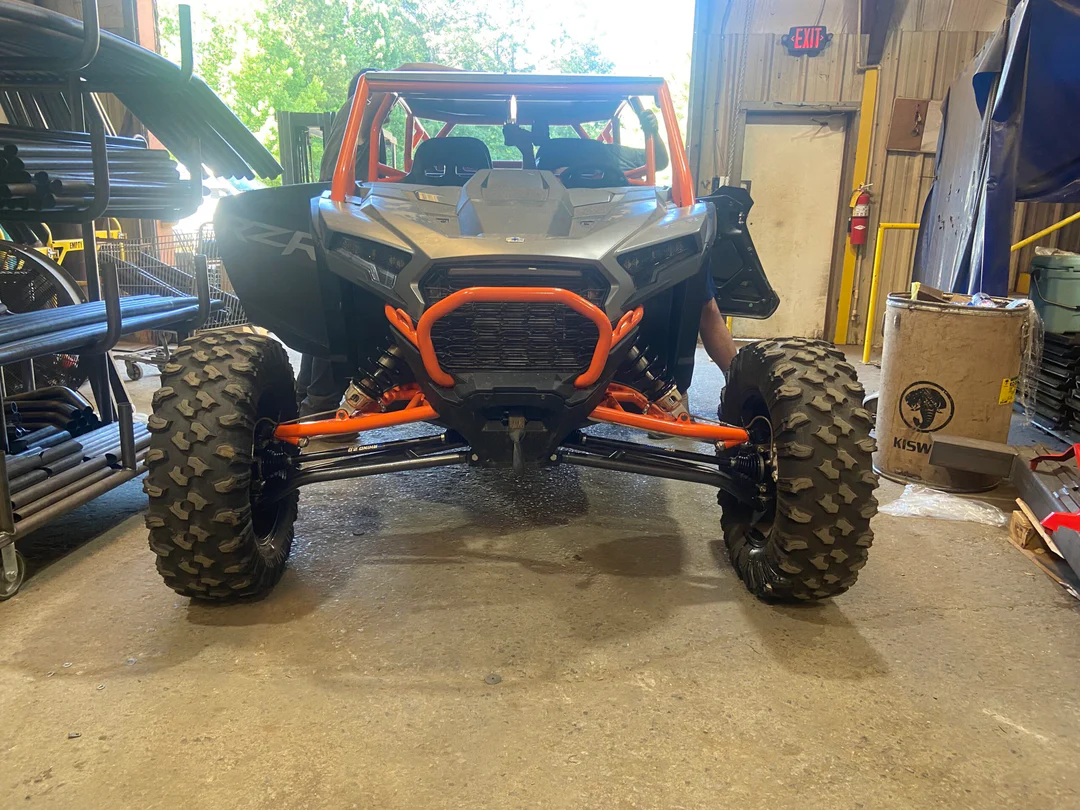

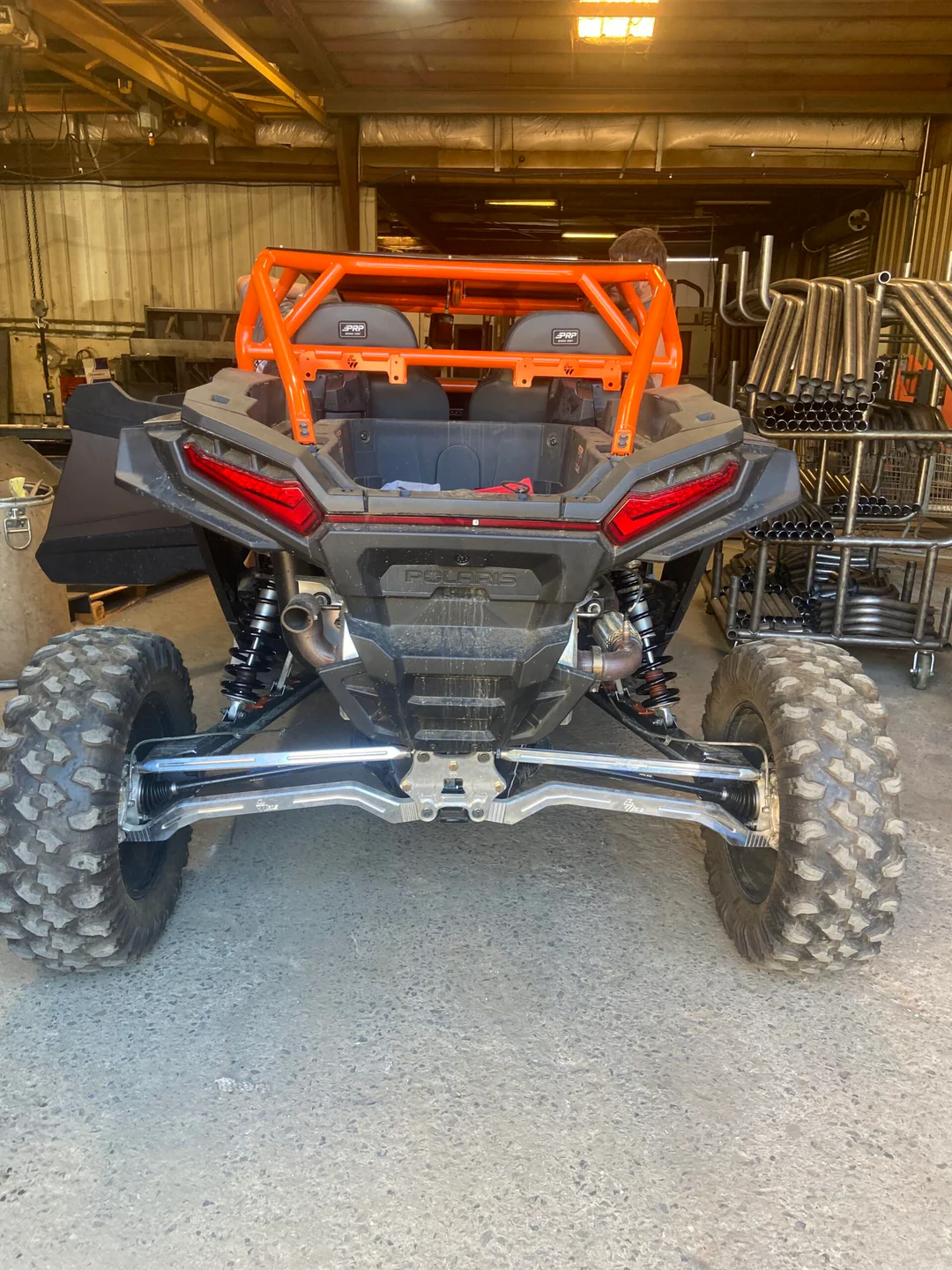

This kit adds 4” to each side of the 2024 XP1000 giving it a 72” width with stock
offset wheels.

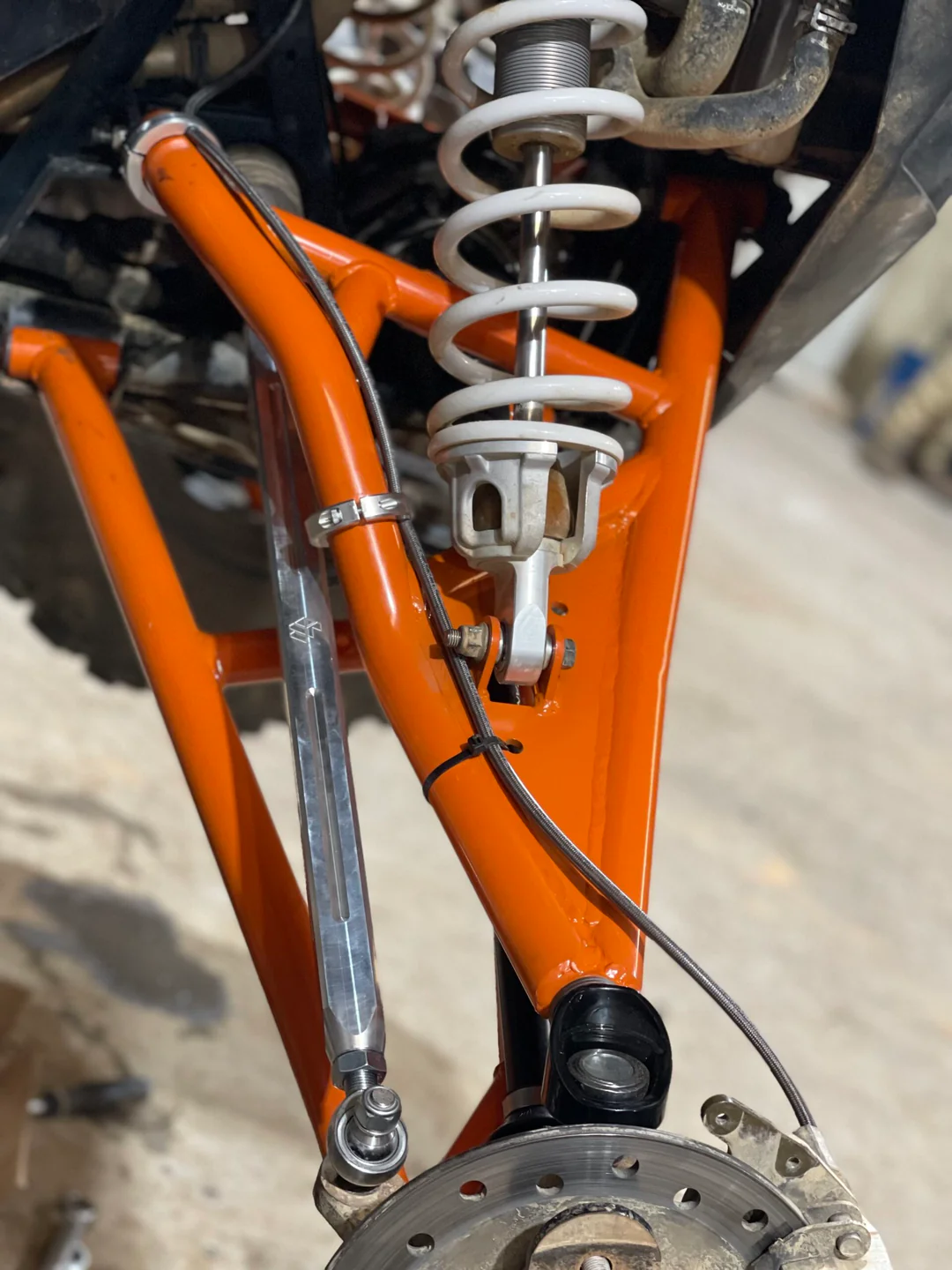

Front a arms are 1.75” forward offset.
A arms are made from 1.5” DOM. and are high clearance.
Front and Rear keep factory shock location.
Can use factory a arm bushings and factory ball joints.

You will have to run a 15″ Wheel with this kit or use a 1″ wheel spacer.

THIS KIT ONLY COMES WITH FORWARD A-ARMS

Only Steel Parts (A -Arms and Trailing Arms will come powder coated). Additional add on charge for powder coating radius rods is available.

Comes with everything needed except axles.

Requires RHINO 2.0 XP LONG TRAVEL AXLES

SATV PART # AX-1-102-F-LT4-DT

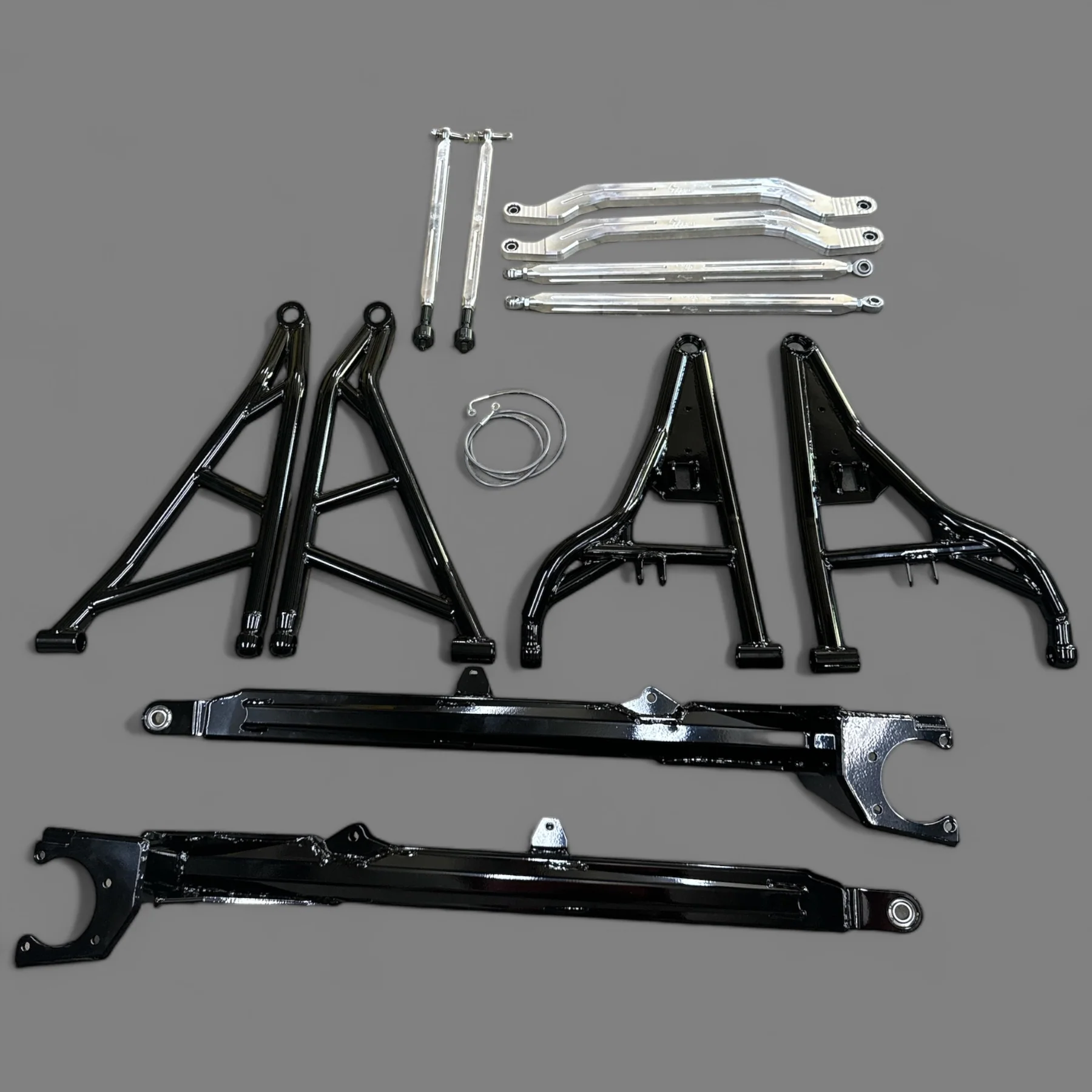

Kit includes:

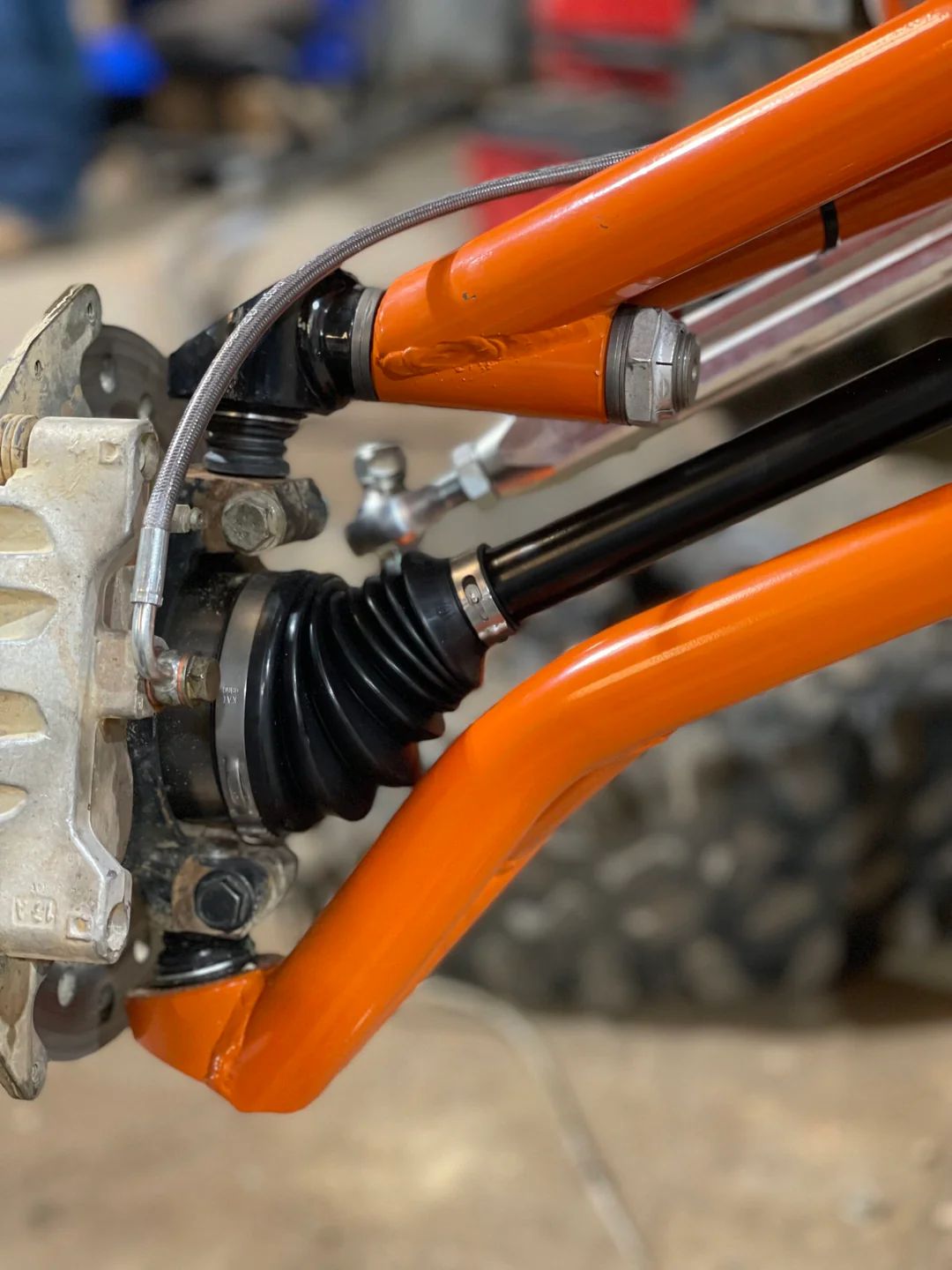

• 1.75″ Forward Front upper and lower A arms. (UPPERS ARE ADJUSTABLE)( Stock size ball joints only. These are not offered for Mega Ball Joints)

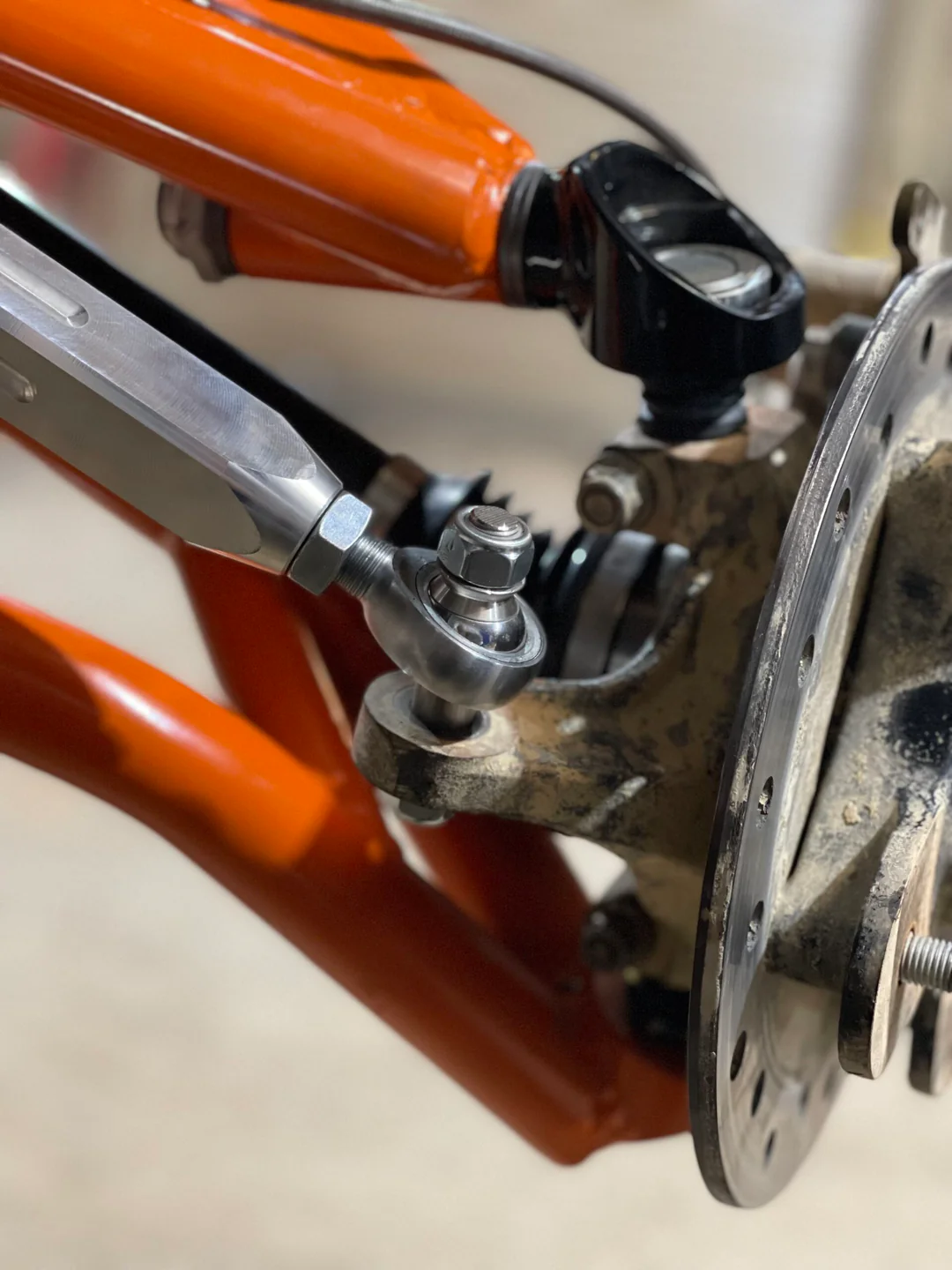

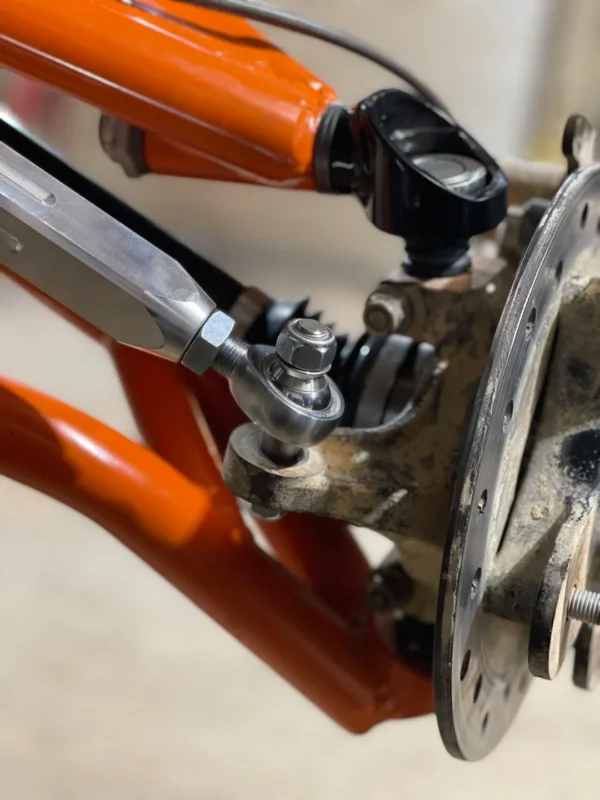

• Set of Tie Rods with L&W HD rebuild-able inner joints.

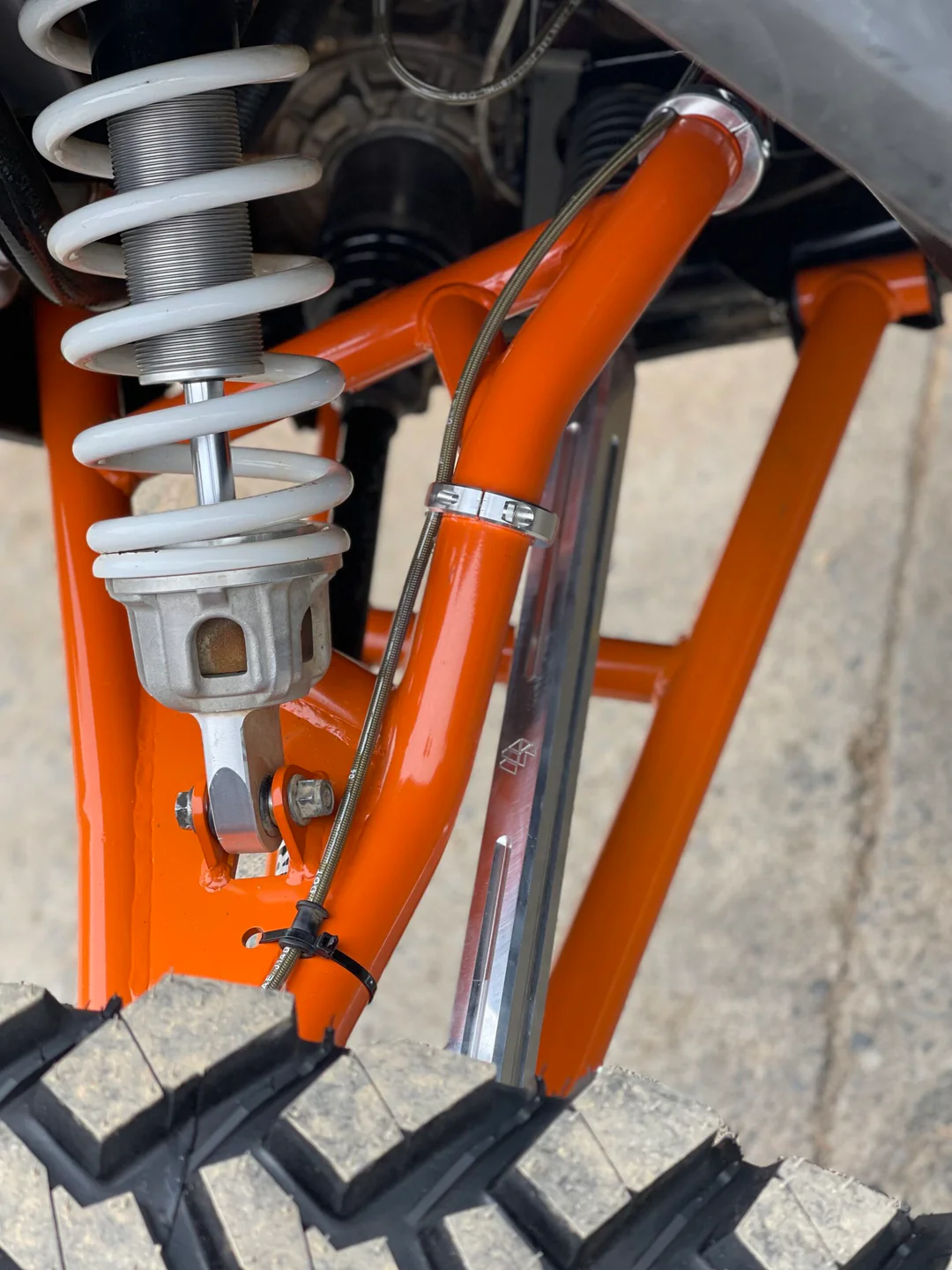

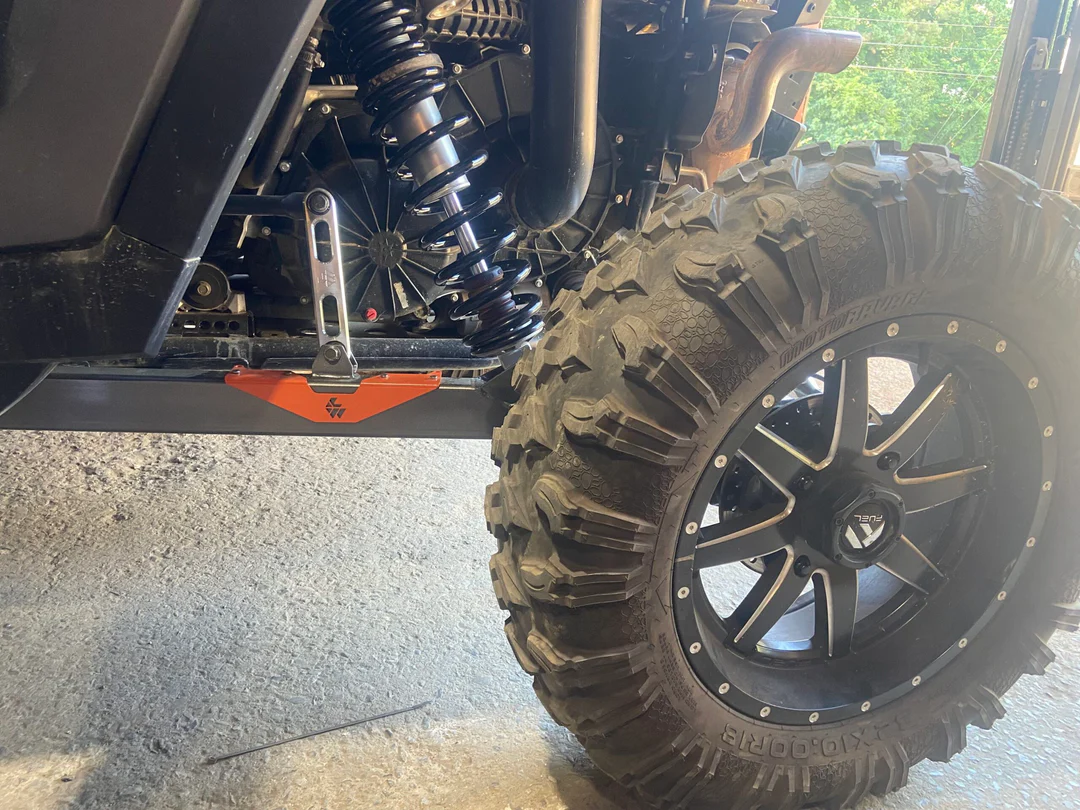

• High Clearance Steel HD Trailing Arms
• High Clearance Billet Aluminum Radius Rods with adjustable uppers.

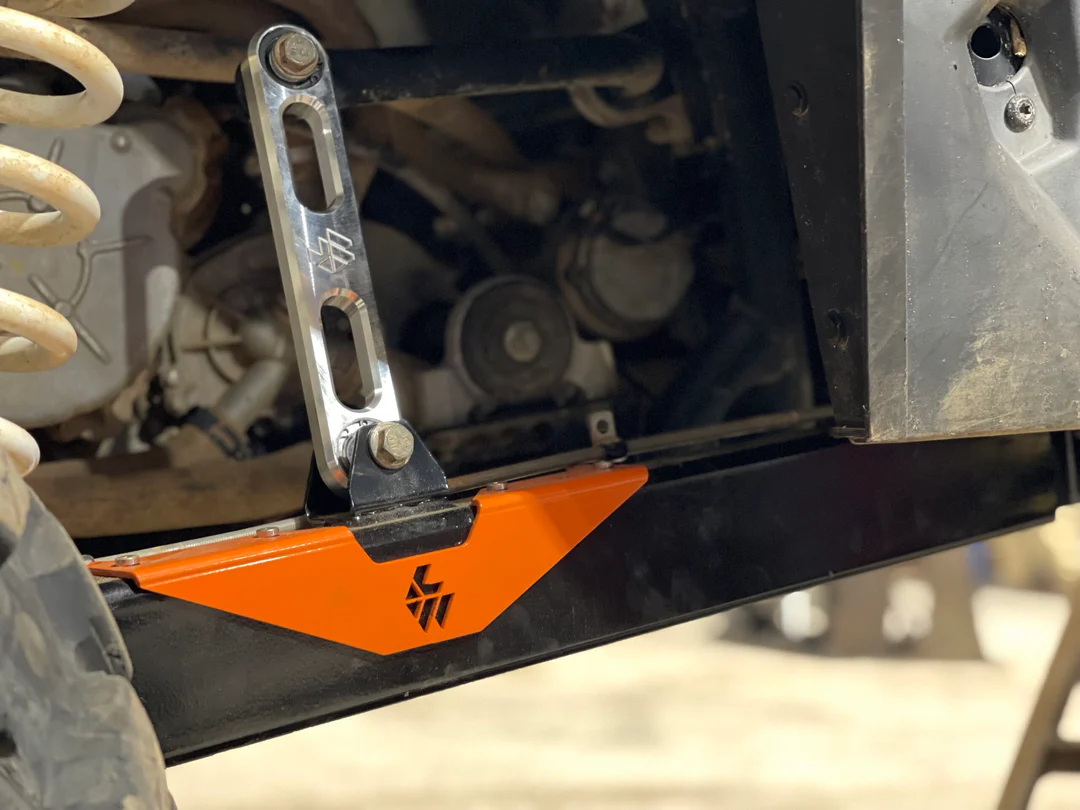

• Rear Sway Bar Links
• (1) Extended brake line for front passenger side
